Twin-stick

BOOTS BACK IN STOCK!

The Twin-Stick allows the use of two-wheel drive low range, and a true neutral. As well as the ability to shift-on-the-fly, while in low range, from 2wd to 4wd and back easily, this is especially useful with a locker in the front axle, and allows for a tighter turning radius. With the factory shifter configuration, neutral only disengages the transfer case from the transmission. This actually has the front and rear drivelines locked together, which is not a great setup for towing either. For the ideal towing setup, check out our Full-Floater Conversion Kit.

The two-wheel drive low range is great for people with a front locker. As those of you setup with a front locker know, the locker keeps pulling you straight when you are trying to turn. With the Twin-Stick, just moving the 2/4 lever into two wheel drive disengages the front axle, and the locker is no longer pulling you straight. This makes tight turns much easier, while allowing the slow speed control of low range. By having 2wd low, the front axle is relieved from undue stress, and four wheel drive can be re-engaged, even while moving, by just throwing one lever.

The Twin-Stick is now available for Tacomas and 3.0L manual transfer cases!

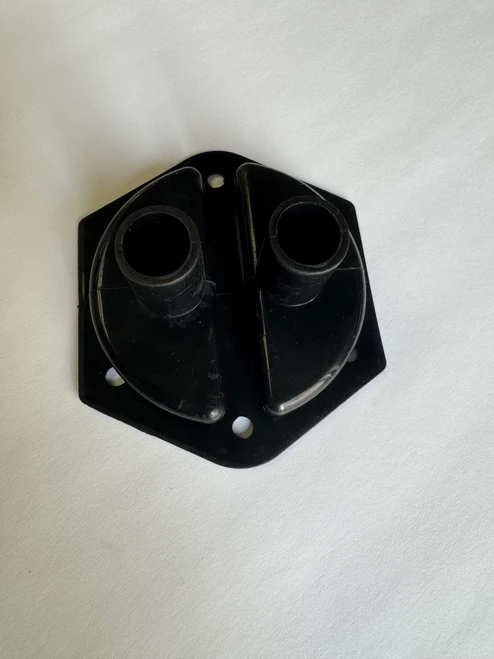

With or without floor boot.

Read 4x4Wire's write up on our Twinstick!

Features:

• A completely sealed Twin-Stick assembly
• This shifter does not use old, worn stock parts. This is a completely new unit.
• Levers are 1/2" mild steel to allow bending to get the knobs in the perfect spot
• Tips are heat treated tool steel for lifetime lasting performance

FAQs:

Q: What’s involved in the modification to the transfer case?

A: You must drain and remove the transfer case from the vehicle. Once removed, the modification takes at most 45 minutes. You must remove the Interlock Pin. This pin keeps the 2 shift rails from sliding independently and engaging two-wheel drive, low range. It requires only a couple wrenches, hammer, and a small punch.

Q: Can I use the Twin-stick with a dual case setup?
A: Yes, it just installs in the rear case.

Q: Does the Twin-Stick allow front wheel drive only?
A: No, for front only, a rear disconnect is required.

TACOMA case modification:
l. Remove the shifter, speedometer wire, and unplug other indicator wires from
case. Remove the case from the vehicle, after draining.
2. Remove the 30mm rear output nut.
3. Remove the 5 bolts from the tail housing.
4. Remove the snap ring on the rear bearing. And take out the 12, 8mm bolts holding
the case halves together
5. Remove the 2 detent plugs (6mm hex), springs and balls from the top side of the case.
6. Carefully pull out the left side shift rail. Grind the tip of the lever,
approximately l/8’’cube that overiaps也re right side shift rail.
7. Reinstall lever after grinding.
8. Assemble case, leaving out the Interlock pin. This 1Omm pin rides between
the detents and may still be in the rear case.

GEAR DRIVE Case Modification
1. Shift into 4HI.
2. Remove stock shifter, and t-case from vehicle.
3. Remove steel cover, or shifter base from top of t-case.
4. Carefully drive out the roll pin in the left side shift rail. Be careful not to drop
this pin into the case. Grabbing the pin with needle nose locking pliers can
help.
5. Remove the detent plug, spring, and ball from the left side of the case with a
6mm hex wrench.
6. Slide the left rail forward, until you can see then end of it through the top of
the case.
7. Tip the case to the left side, and wait until the Interlock Pin falls out the detent
hole.
8. Assemble the case in the reverse order.
9. Install the t-case into the vehicle.
